MATCH PP-BMW 1.7RAM UP 8DSP

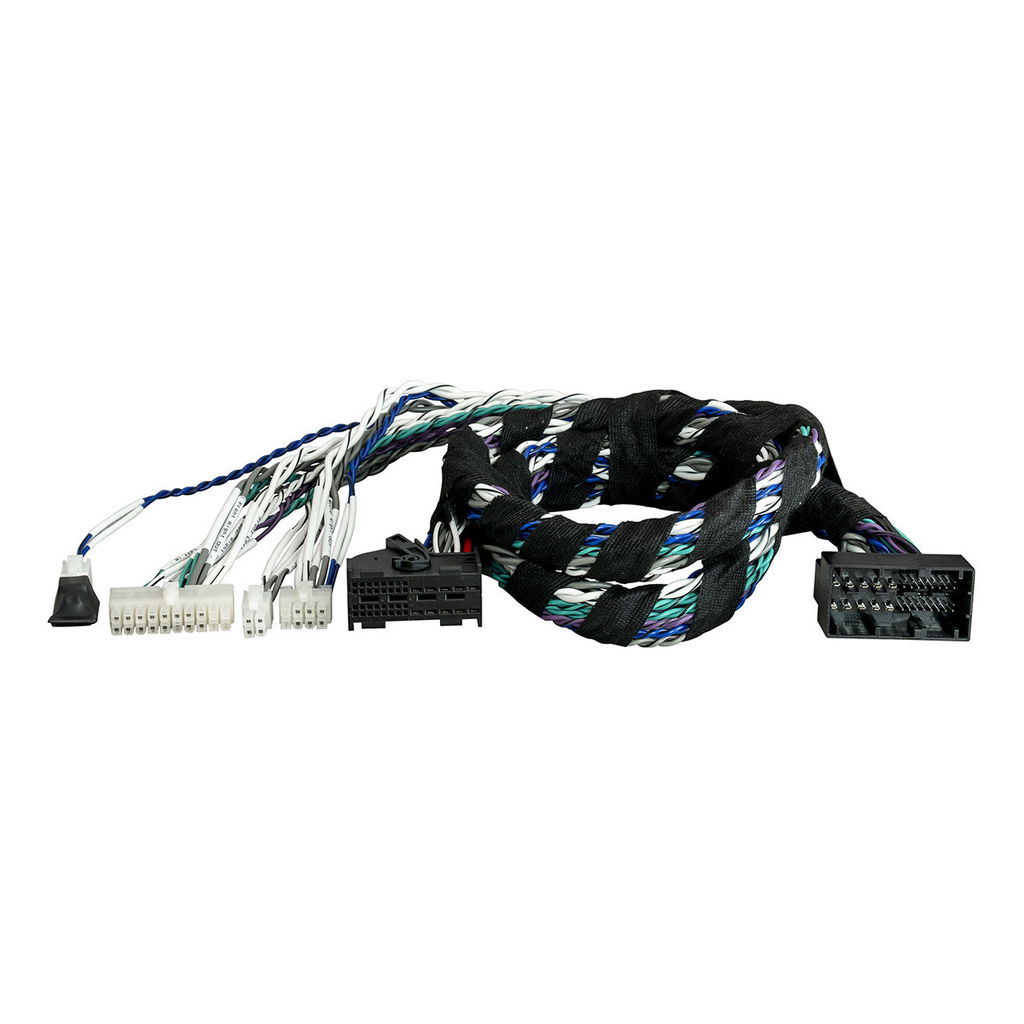

Match 7-Channel Plug & Play wiring harness for UP 8DSP

Compatible with BMW G60 / G61 basic hifi, premium hifi s676 and Harman/Kardon ( with premium hifi S676 system you also have to install analog in module in the UP 8DSP )

The 7-Channel Plug & Play wiring harness PP-BMW 1.7RAM enables the simple connection of a MATCH UP 8DSP with MEC ANALOG IN to selected BMW models from 2019 with a factory RAM Receiver Audio Module.

For all BMW sound systemw with RAM (Receiver Audio Module) with manufacturing year mid 2019
Compatible with the factory STANDARD- and HIFI sound system
Further information about the vehicle compatibility can be found in our adaptor database

connections

1 x 8-pole MOLEX-jacket for the connection of the MATCH BMW Untersitz-Subwoofer & the Center speaker
1 x 20-pole MOLEX-plug for the connection of the System Connector input of the UP 7DSP
1 x 4-pole MOLEX-plug for the connection of the highlevel inputs E + F of the MEC ANALOG IN
1 x 4-pole MOLEX-plug for the connection of the ADEP-module of the factory center channel
1 x 42-pole BMW RAM system jacket
1 x 42-pole BMW RAM system plug
