MATCH PP-BMW 1.10RAM-HK

Technical data


Cable length 1.00 meter

Connections
1 x 20-pole MOLEX plug for the connection of the System Connector input of the UP 10DSP
1 x 8-pole MOLEX plug for the connection of the highlevel inputs E - H of the UP 10DSP
1 x 12-pole MOLEX plug for the connection of speaker outputs E - J of the UP 10DSP
1 x 4-pole MOLEX plug for the connection of the MEC ANALOG IN module
1 x 42-pole BMW RAM system jack
1 x 42-pole BMW RAM system plug
1 x 35-pole BMW system jack
1 x 35-pole BMW system plug

Compatibility
For connection of the MATCH UP 10DSP with ANALOG IN Extension Card
Suitable for BMW i-series vehicles with RAM (Receiver Audio Module)
Compatible with factory installed Harman Kardon sound system
Further information about the vehicle compatibility can be found in our Connection Finder.

Scope of delivery

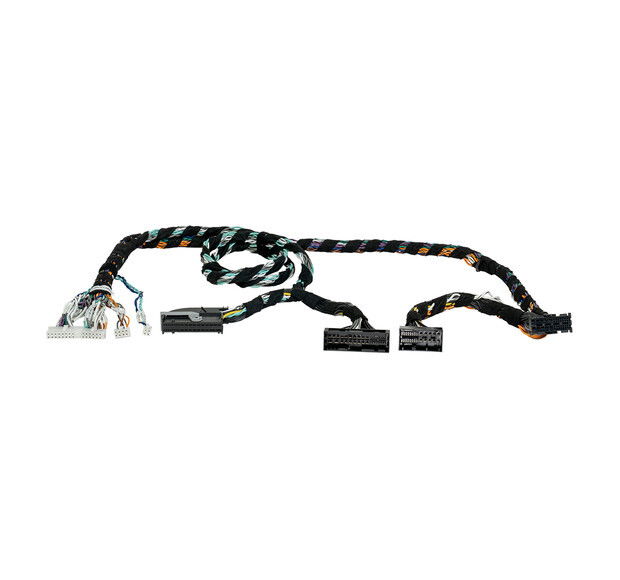

The 10-channel UPGRADE cable harness PP-BMW 1.10RAM-HK enables an easy connection of a MATCH UP 10DSP amplifier with integrated Extension Card MEC ANALOG IN to selected BMW i-models with Harman Kardon sound system and RAM receiver.

Important note: Before the first start-up the Highlevel input inside the UP 10DSP amplifier has to be set to the High Voltage Range (jumper position: Input G - H 32V). For more information about setting the input sensitivity please refer to page 35 of the UP 10DSP manual.

Features
Plug & Play connectors for an easy connection of a MATCH UP 10DSP amplifier with integrated MEC ANALOG IN module
BMW system plugs for connecting the vehicle cable harness
RAM-connection for connecting the vehicle cable harness with RAM receiver
Cable length 1.00 meter
