GROUND ZERO GZCM 6.5N-PROX
1 980 NOK
1 477,08 NOK / Stykke

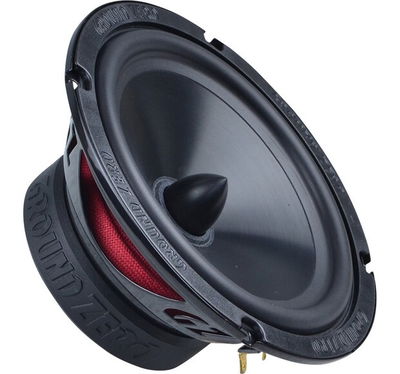

165 mm / 6.5″ high power midrange speaker with neodymium motor
Les mer
Lignende produkter
400 Watts max
165 mm / 6.5″ high end SPL midrange speaker with neodymium motor and aluminum cast basket
6.5″ high power midrange speaker with neodymium motor
38 mm / 1.5″ CCA voice coil
Fiber reinforced paper cone
Neodymium motor
Aluminum cast housing
Aluminum phase plug
water repellend cone
Incl. protection grill
Push terminal
1 piece / package
165 mm / 6.5″ high end SPL midrange speaker with neodymium motor and aluminum cast basket
6.5″ high power midrange speaker with neodymium motor
38 mm / 1.5″ CCA voice coil
Fiber reinforced paper cone
Neodymium motor
Aluminum cast housing
Aluminum phase plug
water repellend cone
Incl. protection grill
Push terminal
1 piece / package
Speaker diameter 165 mm / 6.5”
Impedance 4 Ohm
frequency response 180 Hz – 12 kHz
power handling (RMS) 200 Watt / Watts
power handling (max) 400 Watt / Watts
sensitivity 96 dB
resonance frequency 143 Hz
Vas 2.8 L / 0.10 cu.ft. 1
Qms 3.96
Qes 0.40
Qts 0.36
BL 9.2 N/A
Re 3.4 Ohm / ohms
Le 0.12 mH
Mms 10.7 g
Cms 0.12 mm/N
Xmax (p2p) 10 mm / 0.39“
voice coil 38 mm / 1.5”
magnet 90 mm / 3.54” Neodym
outer diameter 165 mm / 6.5”
mounting cutout 147 mm / 5.79”
mounting depth 63 mm / 2.48”
Impedance 4 Ohm
frequency response 180 Hz – 12 kHz
power handling (RMS) 200 Watt / Watts
power handling (max) 400 Watt / Watts
sensitivity 96 dB
resonance frequency 143 Hz
Vas 2.8 L / 0.10 cu.ft. 1
Qms 3.96
Qes 0.40
Qts 0.36
BL 9.2 N/A
Re 3.4 Ohm / ohms
Le 0.12 mH
Mms 10.7 g
Cms 0.12 mm/N
Xmax (p2p) 10 mm / 0.39“
voice coil 38 mm / 1.5”
magnet 90 mm / 3.54” Neodym
outer diameter 165 mm / 6.5”
mounting cutout 147 mm / 5.79”
mounting depth 63 mm / 2.48”
Technical data:
| Diameter: | 6.5" |
| MAX.Power: | 400W |
| RMS.Power: | 200W |
| Impedance: | 4ohm |
| Frequency Resp: | 180 Hz – 12 kHz |
| SPL: | 96 dB |
| Magnet: | 90 mm / 3.54” Neodym |
| Voice coil: | 38 mm / 1.5” |
| Coil Material: | |
| Former Matrial: | |
| Cut Diameter: | 147 mm / 5.79” |
| Mounting Depth: | 63 mm / 2.48” |
| Galler: |
T/S parametrar
| Fs: | |
| Qts: | 0.36 |
| Qms: | 3.96 |
| Qes: | 0.40 |
| VAS: | 2.8 L / 0.10 cu.ft. 1 |
| Mms: | 10.7 g |
| Xmax: | (p2p) 10 mm / 0.39“ |
| Sd: | |
| Re: | 3.4 Ohm / ohms |
| Le: | 0.12 mH |
| BL: | 9.2 N/A |
